DC Motor Brushes Manufacturer
CARBOLVE manufactures carbon brushes specifically engineered for brushed DC motors. Whether you require custom dimensions for an OEM motor production line or replacement brushes for heavy industrial maintenance, we evaluate your application based on drawings, physical samples, or existing motor operating conditions.
- Custom DC Motor Brush Manufacturing
- Drawing and Sample-Based Production
- Application-Based Material Review
- OEM and Replacement Support

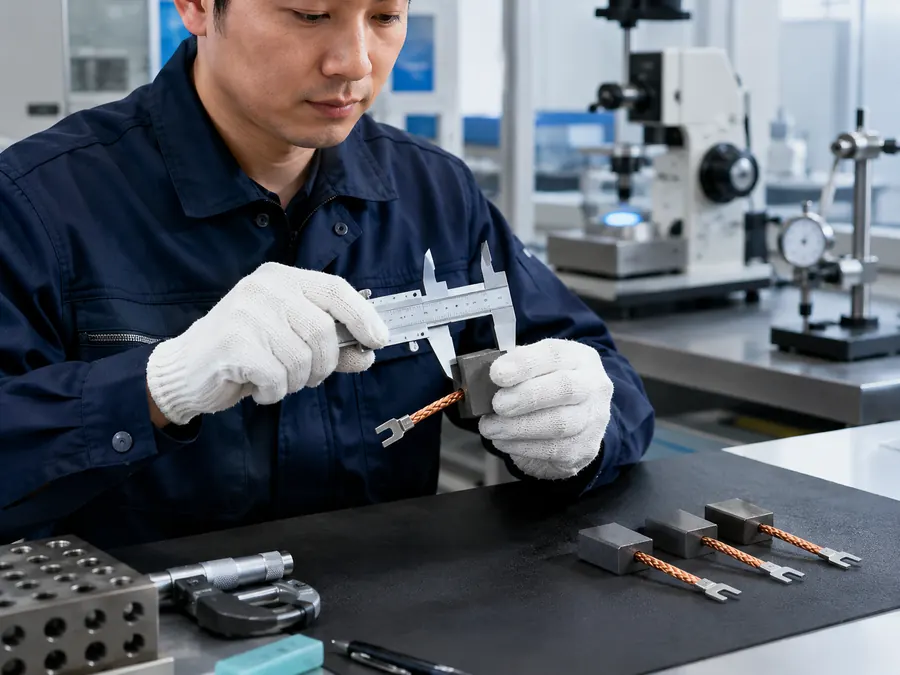

- Dimensional and Assembly Inspection
Send the motor model, brush markings, dimensions, lead and terminal details, operating conditions, and required quantity for evaluation.
Carbon Brushes for Different DC Motor Requirements
Brush dimensions, material grade, contact face geometry, shunts, terminals, holder fit, current load, operating speed, and environmental conditions must be evaluated together to determine the correct product specification.
Industrial DC Motor Brushes
Manufactured for industrial drives, production machinery, material-handling equipment, and rolling mill equipment for both maintenance and OEM projects.
Ask About Industrial DC Motor Brushes
Replacement DC Motor Brushes
Identified and reproduced using existing motor models, OEM part numbers, brush markings, physical samples, detailed photographs, dimensions, and existing wear patterns.
Identify a Replacement Brush
Custom DC Motor Brushes
Produced with non-standard dimensions, custom contact faces, specific shunts, custom terminals, integrated springs or caps, and customer-specific markings.
Request a Custom Brush
OEM DC Motor Brushes
Developed for new motor designs based on engineering drawings, electrical requirements, and brush-holder designs, supporting prototype evaluation and repeat production.
Discuss an OEM ProjectCan’t Identify the Brush?
Send us a clear photograph of your worn brush and motor nameplate for technical evaluation.
What Is a DC Motor Brush?
A DC motor brush is a sliding electrical contact used in a brushed DC motor to transfer current between the stationary electrical circuit and the rotating commutator connected to the armature.
Depending on the specific application and motor design, a complete brush assembly may consist of several components:
- Carbon or graphite brush body
- Machined contact face (flat, radiused, or beveled)
- Flexible copper shunt (lead wire)
- Connection terminal (lug, flag, or eyelet)
- Top pad or connection feature
- Integrated spring or cap (where applicable)
Note: Not every brush contains every component. Construction varies strictly by motor design.
How Do Carbon Brushes Work in a Brushed DC Motor?
A spring or brush-holder mechanism keeps the carbon brush in constant physical contact with the commutator.
Electrical current passes through the external terminal and flexible shunt into the conductive brush body.
The brush transfers this current across the sliding interface to the rotating commutator segments.
The commutator mechanically switches the current direction between the armature windings as the rotor turns, maintaining continuous rotation.
This necessary sliding contact causes gradual, expected wear of both the brush and the commutator surface over time.
Performance Variables
Because motor designs and environments vary significantly, brush performance is heavily dependent on:
Types of DC Motor Brushes & Construction Options
The carbon brush body is only one part of the complete specification. CARBOLVE categorizes and constructs brushes based on project requirements, motor applications, materials, and specific physical assemblies.
By Project Requirement
- • OEM DC motor brush
- • Replacement DC motor brush
- • Custom DC motor brush
- • Prototype brush
- • Maintenance spare brush
- • Repeat-order brush
By Motor Application
- • Industrial DC motor brush
- • Traction motor brush
- • DC servo motor brush
- • Series-wound DC motor brush
- • Shunt-wound DC motor brush
- • Compound DC motor brush
By Material
- • Carbon graphite brush
- • Graphite brush
- • Electrographite brush
- • Copper graphite brush
- • Silver graphite brush
Note: Not every material suits every DC motor.
By Construction
- • Single-shunt brush
- • Multiple-shunt brush
- • Single-piece brush
- • Multi-section brush
- • Spring-loaded brush
- • Brush with terminal
DC Motor Brush Construction Assemblies
Single-Shunt Brush
A single brush body manufactured with one flexible electrical lead and an application-specific terminal.
Multiple-Shunt Brush
A brush designed with two or more leads where high current capacity, flexibility, or assembly constraints require them.
Multi-Section Brush
Several brush wafers operating together in a single holder, designed to improve contact stability or current distribution.
Paired Brush
Two distinct brush elements connected or supplied together according to a matched assembly requirement.
Spring-Loaded Brush
A brush combined directly with a spring, cap, or plug assembly where applicable to the motor housing design.
Custom Terminal Brush
Assembled with a customer-specific lug, flag, eyelet, quick-connect, or other verified terminal connection.
Materials for DC Motor Brushes
There is no single brush material suitable for every DC motor.
Material selection depends strictly on motor design, voltage, current, speed, commutation, duty cycle, brush-holder condition, commutator material, temperature, humidity, contamination, and required wear behavior.
Electrographite Brushes
Commonly considered for industrial DC motors because suitable grades can provide application-specific commutation, electrical, thermal, and wear characteristics under demanding loads.
Carbon Graphite Brushes
Considered for selected motors requiring an application-specific balance of resistance, mechanical strength, commutation, and wear.
Graphite Brushes
Graphite-rich materials may provide lower-friction characteristics in selected applications where speed and load conditions dictate.
Copper Graphite Brushes
Considered for selected lower-voltage or higher-current applications where higher electrical conductivity is important. Not recommended universally for all DC motors.
Silver Graphite Brushes
Generally associated with specialized low-resistance, signal, grounding, or electrical-contact applications rather than standard industrial DC commutator motors.
| Material Family | General Direction | Possible DC Motor Use | Information Required |
|---|---|---|---|
| Electrographite | Application-specific commutation and wear balance | Industrial DC motors and demanding commutator applications | Current, speed, duty, environment and commutator |
| Carbon graphite | Electrical and mechanical balance varies by grade | Selected brushed motors | Motor data and existing brush performance |
| Graphite | Potentially lower-friction direction | Selected speed and load conditions | Speed, load and surface condition |
| Copper graphite | Higher conductivity and lower resistance direction | Selected low-voltage or high-current equipment | Voltage, current, temperature and commutator |
| Silver graphite | Specialty conductive-contact direction | Selected signal, grounding or specialized contacts | Contact function and electrical requirements |
This table provides general material directions only. Final brush selection requires complete motor and operating information.
Custom DC Motor Brush Specifications & Requirements
Physical Dimensions and Geometry
| Thickness | Produced according to drawing, sample, or confirmed holder dimensions |
| Width | Produced according to drawing, sample, or confirmed holder dimensions |
| Length | Confirm the original or unworn length where possible |
| Contact face | Flat, radiused, beveled, grooved, or application-specific |
| Brush shape | Rectangular, stepped, angled, or custom where verified |
| Chamfer/Slot | Produced according to the approved design / verified machining capability |
| Part marking | Grade, part, batch, or customer marking subject to confirmation |
Shunt and Terminal Parameters
| Number of shunts | One, multiple, or design-specific |
| Shunt position | Top, side, centered, offset, or drawing-specific |
| Shunt length | Confirmed from the connection point to the terminal |
| Shunt size | Current and assembly dependent |
| Terminal type | Lug, eyelet, flag, quick-connect, or custom where verified |
| Terminal orientation | Confirmed by drawing or sample |
| Spring/Top pad | Included where applicable and verified / Confirmed to original design |
Grade-Dependent Technical Data
Values for Density, Hardness, Electrical resistivity, Contact voltage drop, Friction direction, Current-density direction, Peripheral-speed direction, and Flexural strength are:
Available according to the verified CARBOLVE material grade.
Motor Information Required for Brush Selection
| Motor type & brand | Brushed DC motor, winding type, manufacturer, and complete model number |
| Nameplate | Clear photograph |
| Electrical data | Voltage (rated/actual), Current (rated/operating), Motor power |
| Mechanical data | Rotational speed, Commutator diameter, Commutator surface condition |
| Holder & Spring | Brush holder dimensions/condition, Spring pressure where measured |
| Operating conditions | Duty cycle (continuous, start-stop, reversing), Environment (temp, humidity, dust, vibration) |
| Existing situation | Existing brush details (sample/photos), Existing problem (wear, sparking, heat) |
| Commercial | Quantity (Trial, maintenance, annual, or OEM demand) |
Common DC Motor Brush Sourcing and Performance Problems
Brush symptoms may originate from the material, the commutator, the brush holder, or the wider motor system. CARBOLVE evaluates the complete application.
Rapid Brush Wear
Factors: Unsuitable grade, excessive current, high speed, incorrect spring pressure, poor commutator surface, low humidity, or contamination.
CARBOLVE Response: Review the existing brush, motor data, wear pattern, holder condition, and environment before proposing a product direction.
Excessive Sparking
Factors: Incorrect material, poor contact, incorrect neutral position, worn commutator, holder problems, overload, or motor faults.
CARBOLVE Response: Evaluate the brush and the wider motor system. (A different brush will not always eliminate sparking caused by motor faults).
Brush Sticking in the Holder
Factors: Incorrect brush dimensions, rough brush sides, dust buildup, holder deformation, contamination, or thermal effects.
CARBOLVE Response: Confirm brush and holder dimensions, clearance tolerances, surface condition, and operating environment.
Uneven Brush Wear
Factors: Uneven spring pressure, holder misalignment, commutator runout, vibration, uneven current distribution, or mixed brush grades.
CARBOLVE Response: Review the complete brush set and motor rigging condition.
Commutator Damage
Symptoms: Grooving, threading, copper drag, burning, pitting, or uneven film formation.
CARBOLVE Response: Review the brush grade, applied pressure, commutator condition, load, contamination, and maintenance history.
Difficult-to-Find Replacement Brush
Obsolete parts or unsupported legacy industrial DC motors often lack technical drawings or original supplier support.
CARBOLVE Response: Evaluate the motor manufacturer, model, part number, markings, clear photographs, dimensions, or physical sample to reproduce the required part.
Why Work With CARBOLVE for DC Motor Brushes?
Focused Carbon Brush Range
CARBOLVE focuses strictly on industrial carbon brushes and related carbon and graphite products, ensuring deep technical familiarity with sliding contact applications.
Drawing & Sample Production
Brushes can be evaluated and manufactured from engineering drawings, physical samples, detailed photographs, verified dimensions, markings, and motor information.
Custom Construction Support
Brush body, contact face, shunts, terminals, springs, caps, and markings can be reviewed and manufactured according to the specific assembly design.
Application-Based Material Review
Material discussions thoughtfully consider electrical load, speed, commutation needs, environment, and existing performance rather than relying on standard guesses.
OEM and Replacement Projects
CARBOLVE can evaluate new motor projects, maintenance replacements, obsolete parts, and establish reliable repeat-order requirements.
Inspection & Confirmation
Critical dimensions, construction details, markings, quantity, and packaging can be checked according to agreed requirements before shipment.
Custom DC Motor Brushes for OEM and Industrial Projects
CARBOLVE can evaluate new DC motor designs, custom carbon brushes, existing OEM brush specifications, replacement brushes, obsolete parts, drawing-based components, and sample-based reproduction. We support custom shunts, custom terminals, custom contact faces, trial samples, maintenance quantities, batch orders, and repeat production.
Final feasibility, material, dimensions, assembly, inspection, and quotation are confirmed after technical review.
Identify a Replacement DC Motor Brush
Replacement brushes may be identified using the motor manufacturer, motor model, OEM part number, existing brush marking, brush dimensions, contact-face geometry, shunt and terminal details, holder dimensions, a physical sample, or clear photographs.
Search by Motor Information
Provide the motor manufacturer, complete model, nameplate photograph, and original part number.
Search by Brush Dimensions
Provide thickness, width, original length, contact radius, shunt length, and terminal dimensions.
Search by Physical Sample
Send a sample when markings or drawings are unavailable for physical evaluation.
How CARBOLVE Handles a DC Motor Brush Inquiry
Submit Information
Drawing, sample, photos, motor model, brush marking, dimensions, and quantity.
Motor Review
Review voltage, current, speed, duty cycle, environment, commutator, and problem.
Geometry Confirm
Confirm thickness, width, length, contact face, bevel, slot, and wear mark.
Construction
Confirm shunts, lead position, length, terminal, spring, cap, or multi-section design.
Material Direction
Review the existing grade or propose a possible material family based on application.
Quotation
Confirm material, dimensions, construction, quantity, inspection, and terms.
Sample Validation
Customer checks holder fit, movement, motor operation, sparking, and wear.
Batch Production
Proceed after the relevant product specification is approved.
How DC Motor Brushes Are Manufactured
DC Motor Brush Quality Control Before Shipment
Dimensional Inspection
Check thickness, width, length, contact radius, bevel, slot, hole, shunt position, and terminal dimensions.
Surface and Edge Inspection
Check for cracks, chips, rough sides, incorrect bevels, contact-face defects, and damaged corners.
Shunt and Terminal Inspection
Check number, position, length, visible condition, movement, terminal type, orientation, and connection condition.
Marking and Quantity
Confirm part number, grade or material reference, customer mark, set quantity, order quantity, and labels.
Optional Tests
[Insert verified CARBOLVE test capability, e.g., shunt pull test, contact voltage drop, if verified]
Applications for DC Motor Brushes
Note: These industries utilize brushed DC motor drives for specific variable-speed or high-torque requirements. Not every machine in these industries uses a brushed DC motor.
Industrial DC Motors
Used in applicable variable-speed and high-torque industrial equipment requiring robust commutation.
Cranes and Hoists
Brushed DC motors may be used in selected lifting and material-handling systems for torque control.
Rolling Mills
DC motor systems may be used in selected rolling and processing equipment demanding electrographite brushes.
Legacy Equipment
Replacement brushes may be required for older industrial DC motors no longer supported by the original supplier.
How to Choose the Right DC Motor Brushes
How to Measure a DC Motor Brush for Replacement
Recommended tools: Vernier caliper, micrometer, radius gauge. Dimensions alone may not identify the correct brush material. Motor and operating information may still be required.
Technical Comparisons & Terminology
DC Motor Brushes vs AC Motor Brushes
| Motor system | Brushed DC motor with commutator | Applicable AC design (slip-ring, universal) |
|---|---|---|
| Main contact | Commonly a commutator | Commutator or slip ring |
| Caution | Not used in brushless DC motors | Many standard AC induction motors do not use brushes |
Brushed DC Motor vs Brushless DC Motor
| Commutation | Mechanical commutator and brushes | Electronic commutation |
|---|---|---|
| Carbon brushes | Required | Not used |
| Wear components | Brushes and commutator require inspection | No brush or commutator wear |
Carbon vs Graphite Brush
Carbon brush is the broad product term.
Graphite brush generally refers to a brush made from a graphite-rich material.
Electrographite, carbon graphite, and copper graphite are distinct material families. The correct material cannot be selected from the name alone.
Electrographite vs Copper Graphite
Electrographite: Engineered graphitized material family. Often considered for industrial DC commutation.
Copper Graphite: Graphite and copper family. Considered when higher conductivity is required.
Copper graphite is not automatically better because it contains metal. Selection is application dependent.
Single-Piece vs Multi-Section
Single-Piece: One brush body, simpler construction, used in many standard holders.
Multi-Section: Two or more wafers, may address application-specific current distribution or contact behavior.
Multi-section brushes do not always provide longer life; the correct construction depends on the holder and design.
DC Motor Brush Troubleshooting & Inspection
| Symptom | Possible Contributing Factors | Information to Check |
|---|---|---|
| Rapid brush wear | Grade, current, speed, pressure, commutator or environment | Motor data, wear pattern and brush grade |
| Excessive sparking | Contact, grade, neutral position, overload or motor fault | Load, brush fit, commutator and motor condition |
| Threading | Contamination, low pressure, copper transfer or unsuitable brush | Commutator lines, pressure and brush surface |
| Grooving | Abrasive grade, contamination or incorrect material | Groove pattern and brush condition |
| Copper drag | Low pressure, vibration or abrasive contact | Commutator segment edges and brush rigging |
| Flashover | Conductive dust, copper particles, contamination or electrical fault | Motor cleanliness and commutator condition |
| Lead overheating | Current, connection, lead size or terminal condition | Shunt, terminal and load |
Preventive Inspection Checklist
- • Disconnect and safely isolate the motor before inspection.
- • Inspect all brushes in the set and compare lengths.
- • Check free movement in the holders.
- • Inspect shunts, terminals, spring, and holder condition.
- • Inspect contact-face pattern and commutator surface.
- • Look for dust, oil, moisture, or contamination.
- • Replace brushes according to the motor manufacturer’s limits.
- ! Do not mix unverified brush grades in one motor.
Evaluate CARBOLVE With Verified Manufacturing Evidence
Manufacturing Evidence
- • Real factory photographs
- • Brush machining photographs
- • Shunt assembly photographs
- • Terminal assembly photographs
- • Product marking capability
Quality Evidence
- • Dimensional inspection
- • Shunt and terminal inspection
- • [Insert verified material report]
- • [Insert verified inspection report]
- • [Insert verified CARBOLVE certificate]
Product & Shipment Evidence
- • Finished custom brush sets
- • Product labels
- • Protective packaging
- • Shipment photographs
- • Customer-authorized case information
Custom DC Motor Brush Solutions
Sample Application Format: Industrial DC Motor Brush
Motor type: Industrial DC Drive
Existing problem: Rapid wear in dusty environment
Material direction: Application-specific electrographite
Verified result: The replacement brushes achieved the required holder fit during customer testing.
Sample Application Format: Replacement From Sample
Available sample: Worn physical brush
Missing info: Original length and grade
Replacement solution: Evaluated motor data and holder dimensions
Verified result: The approved dimensions were used for repeat production.
Sample Application Format: Custom Multi-Shunt
Application: High-current DC application
Brush construction: Multi-shunt design
Terminal requirement: Custom heavy-duty lug
Verified result: The brushes maintained stable connection during the customer's trial.
Frequently Asked Questions
Do all DC motors use carbon brushes?
Does replacing brushes always solve motor sparking?
How long do DC motor brushes last?
When should DC motor brushes be replaced?
Can CARBOLVE reproduce a brush from a sample?
Need DC Motor Brushes for an OEM or Replacement Project?
Invite CARBOLVE to evaluate your requirement. Send your motor manufacturer, model, nameplate, brush marking, drawing, sample, photographs, dimensions, shunt and terminal details, existing material, voltage, current, speed, operating environment, and required quantity.
Complete brush and motor information helps CARBOLVE evaluate dimensions, construction, material direction, manufacturing feasibility, inspection requirements, and quotation details.
Quotation Information Checklist
Not every item is required for every inquiry. Provide all information currently available.
